Description

A Lidar + RGB Solution for Aerial Surveying

Intro

The Zenmuse L1 integrates a Livox Lidar module, a high-accuracy IMU, and a camera with a 1-inch CMOS on a 3-axis stabilized gimbal. When used with Matrice 300 RTK and DJI Terra, the L1 forms a complete solution that gives you real-time 3D data throughout the day, efficiently capturing the details of complex structures and delivering highly accurate reconstructed models.

Livox Lidar Module

• Frame Lidar with up to 100% effective point cloud results
• Detection Range: 450m (80% reflectivity, 0 klx) / 190 m (10% reflectivity, 100 klx)
• Effective Point Rate: 240,000 pts/s
• Supports 3 Returns
• Line Scan Mode and Non-repetitive Scan Mode

RGB Camera

• 20MP
• 1-inch CMOS
• Mechanical Shutter

High-accuracy IMU

• Accuracy: 0.025° (roll/pitch) / 0.08° (yaw)
• Vision Sensor for Positioning Accuracy
• GNSS, IMU, RGB Data Fusion

Point Cloud LiveView
Real-time point clouds provide immediate insights onsite, so operators are informed to make critical decisions quickly.
You can also verify fieldwork quality by checking point cloud data immediately after each flight.

Exceptional Efficiency
Generate true-color point cloud models in real-time, or acquire 2 km2 of point cloud data in a single flight [1] using the Livox frame Lidar module with a 70° FOV and a visible light camera with a 1-inch sensor.

Unparalleled Accuracy
Render centimeter-accurate reconstructions thanks to the high-accuracy IMU, a vision sensor for positioning accuracy, and the incorporation of GNSS data.

Ready When You Are

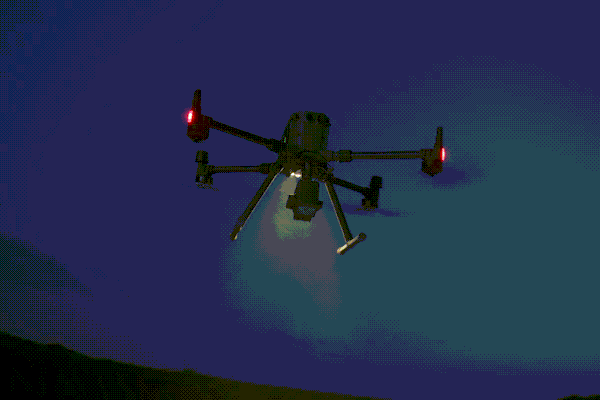

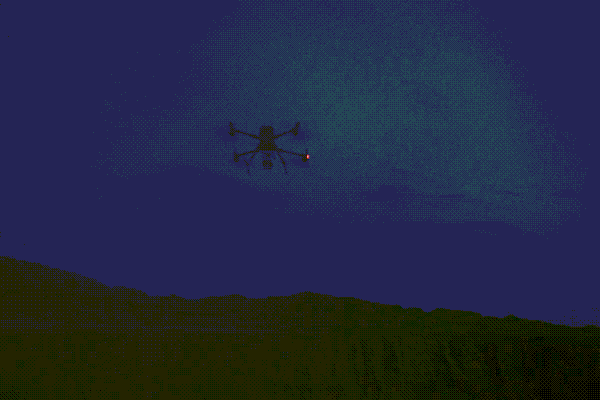

The IP44 rating allows the L1 to be operated in rainy or foggy environments. The Lidar module’s active scanning method enables you to fly at night.

Exceptional Efficiency

Generate true-colour point cloud models in real-time, or acquire 2 km2 of point cloud data in a single flight [1] using the Livox frame Lidar module with a 70° FOV and a visible light camera with a 1-inch sensor.

Unparalleled Accuracy

Render centimeter-accurate reconstructions thanks to the high-accuracy IMU, a vision sensor for positioning accuracy, and the incorporation of GNSS data.

Ready When You Are

The IP54 rating allows the L1 to be operated in rainy or foggy environments. The Lidar module’s active scanning method enables you to fly at night.

Measurement and Annotation

Acquire and communicate critical dimensions on the point cloud model using measurements and annotations.

Point Cloud LiveView

Real-time point clouds provide immediate insights onsite, so operators are informed to make critical decisions quickly.
You can also verify fieldwork quality by checking point cloud data immediately after each flight.

Visualize Data as You Fly

Livox Lidar Module

-Frame Lidar with up to 100% effective point cloud results
-Detection Range: 450m (80% reflectivity, 0 klx) / 190 m (10% reflectivity, 100 klx)
-Effective Point Rate: 240,000 pts/s
-Supports 3 Returns[3]
-Non-repetitive scanning pattern, Repetitive scanning pattern

Everything in View

RGB Camera

– 20MP
– 1-inch CMOS
– Mechanical Shutter

Accurate Details at Your Disposal

High-accuracy IMU

-Vision Sensor for Positioning Accuracy
-GNSS, IMU, RGB Data Fusion

One-stop Post-processing

DJI Terra fuses the IMU and GNSS data for point cloud and visible light calculations, in addition to conducting POS data calculations so you can effortlessly generate reconstructed models and accuracy reports.
